FDBL0120N40

In Stock: 1,736

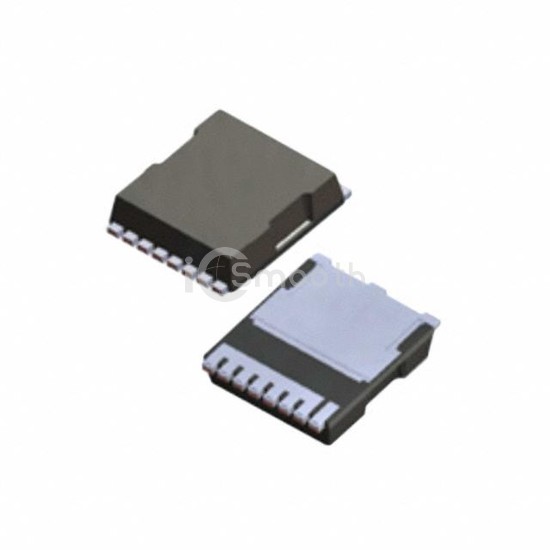

FDBL0120N40 - onsemi - Transistors - FETs, MOSFETs - Single
REF: FDBL0120N40 onsemi
FDBL0120N40

onsemi

MOSFET N-CH 40V 240A 8HPSOF

FDBL0120N40 is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 40V 240A 8HPSOF. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case 8-PowerSFN.

Datasheet Request a Quote

In Stock: 1,736

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)40 V
Current - Continuous Drain (Id) @ 25°C240A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs1.2mOhm @ 80A, 10V
Vgs(th) (Max) @ Id4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs107 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds7735 pF @ 25 V
FET Feature-
Power Dissipation (Max)300W (Tj)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package8-HPSOF
Package / Case8-PowerSFN
