Name: FDB0190N807L
Brand: onsemi
SKU: FDB0190N807L
Price: 6.20 USD
Availability: InStock

REF: FDB0190N807L onsemi

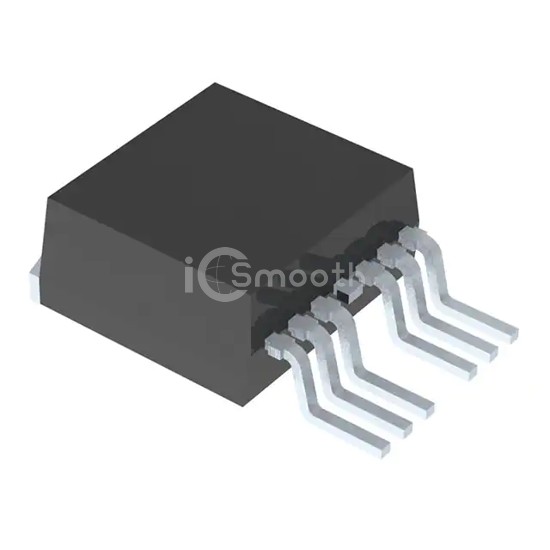

FDB0190N807L

MOSFET N-CH 80V 270A TO263-7

FDB0190N807L is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 80V 270A TO263-7. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case TO-263-7, D²Pak (6 Leads + Tab).

Datasheet Request a Quote

In Stock: 4,624

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	80 V
Current - Continuous Drain (Id) @ 25°C	270A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	8V, 10V
Rds On (Max) @ Id, Vgs	1.7mOhm @ 34A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	249 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	19110 pF @ 40 V
FET Feature	-
Power Dissipation (Max)	3.8W (Ta), 250W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	TO-263-7
Package / Case	TO-263-7, D²Pak (6 Leads + Tab)
