Name: FCU600N65S3R0
Brand: onsemi
SKU: FCU600N65S3R0
Price: 1.39 USD
Availability: InStock

REF: FCU600N65S3R0 onsemi

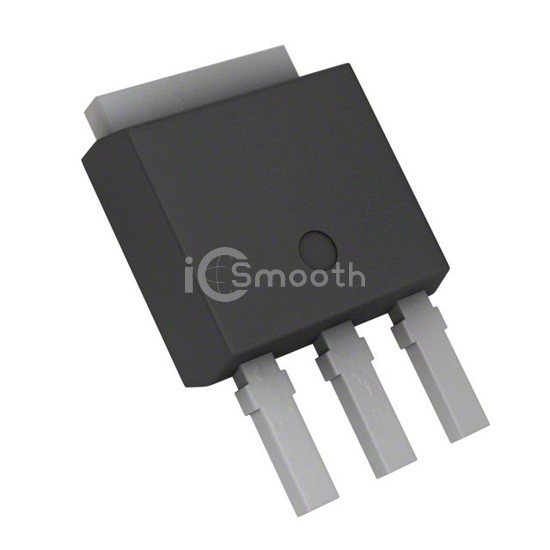

FCU600N65S3R0

MOSFET N-CH 650V 6A IPAK

FCU600N65S3R0 is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 650V 6A IPAK. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-251-3 Stub Leads, IPak.

Datasheet Request a Quote

In Stock: 2,129

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	650 V
Current - Continuous Drain (Id) @ 25°C	6A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	600mOhm @ 3A, 10V
Vgs(th) (Max) @ Id	4.5V @ 600µA
Gate Charge (Qg) (Max) @ Vgs	11 nC @ 10 V

Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	465 pF @ 400 V
FET Feature	-
Power Dissipation (Max)	54W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	I-PAK
Package / Case	TO-251-3 Stub Leads, IPak
