Name: FCPF600N65S3R0L-F154
Brand: onsemi
SKU: FCPF600N65S3R0L-F154
Price: 2.09 USD
Availability: InStock

REF: FCPF600N65S3R0L-F154 onsemi

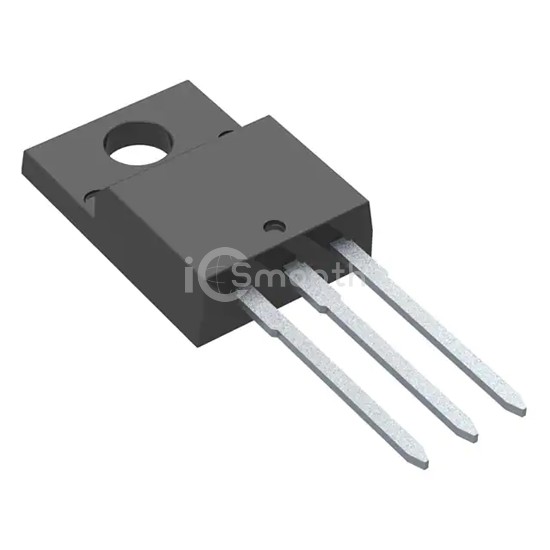

FCPF600N65S3R0L-F154

onsemi

POWER SUPERFET MOSFET N-CHANNEL

FCPF600N65S3R0L-F154 is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. POWER SUPERFET MOSFET N-CHANNEL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-220-3 Full Pack.

Datasheet Request a Quote

In Stock: 5,239

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	650 V
Current - Continuous Drain (Id) @ 25°C	6A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	600mOhm @ 3A, 10V
Vgs(th) (Max) @ Id	4.5V @ 120µA
Gate Charge (Qg) (Max) @ Vgs	11 nC @ 10 V

Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	465 pF @ 400 V
FET Feature	-
Power Dissipation (Max)	24W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-220F-3
Package / Case	TO-220-3 Full Pack
