Name: FCMT360N65S3
Brand: onsemi
SKU: FCMT360N65S3
Price: 1.34 USD
Availability: InStock

REF: FCMT360N65S3 onsemi

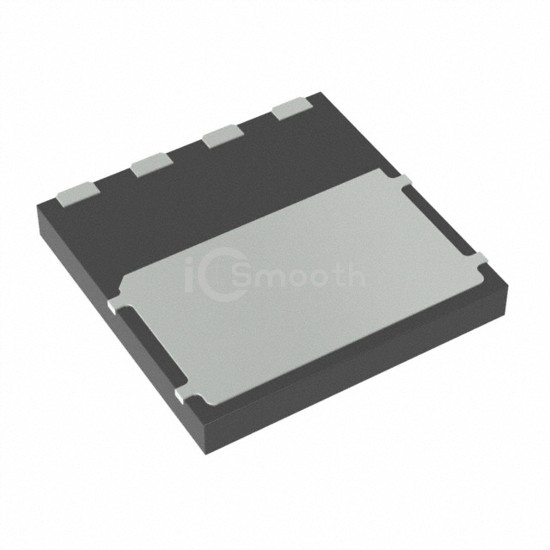

FCMT360N65S3

MOSFET N-CH 650V 10A 4PQFN

FCMT360N65S3 is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 650V 10A 4PQFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 4-PowerTSFN.

Datasheet Request a Quote

In Stock: 5,602

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	650 V
Current - Continuous Drain (Id) @ 25°C	10A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	360mOhm @ 5A, 10V
Vgs(th) (Max) @ Id	4.5V @ 200µA
Gate Charge (Qg) (Max) @ Vgs	18 nC @ 10 V

Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	730 pF @ 400 V
FET Feature	-
Power Dissipation (Max)	83W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	4-PQFN (8x8)
Package / Case	4-PowerTSFN
