Name: FCH041N65EFLN4
Brand: onsemi
SKU: FCH041N65EFLN4
Availability: InStock

REF: FCH041N65EFLN4 onsemi

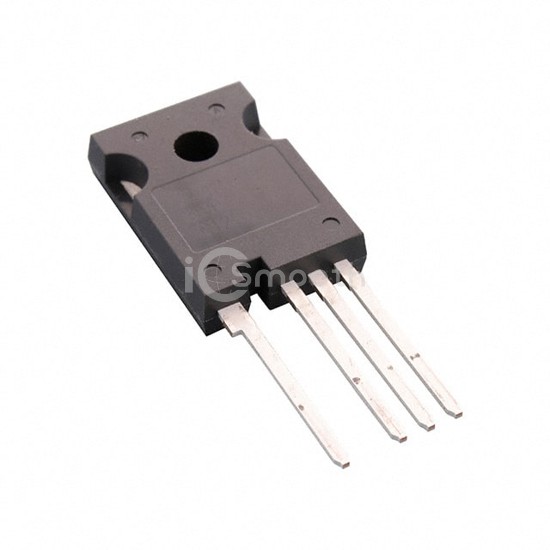

FCH041N65EFLN4

MOSFET N-CH 650V 76A TO247-4

FCH041N65EFLN4 is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 650V 76A TO247-4. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-247-4.

Datasheet Request a Quote

In Stock: 9,606

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	650 V
Current - Continuous Drain (Id) @ 25°C	76A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	41mOhm @ 38A, 10V
Vgs(th) (Max) @ Id	5V @ 7.6mA
Gate Charge (Qg) (Max) @ Vgs	298 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	12560 pF @ 100 V
FET Feature	-
Power Dissipation (Max)	595W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-247-4
Package / Case	TO-247-4
