FCH023N65S3L4

In Stock: 410

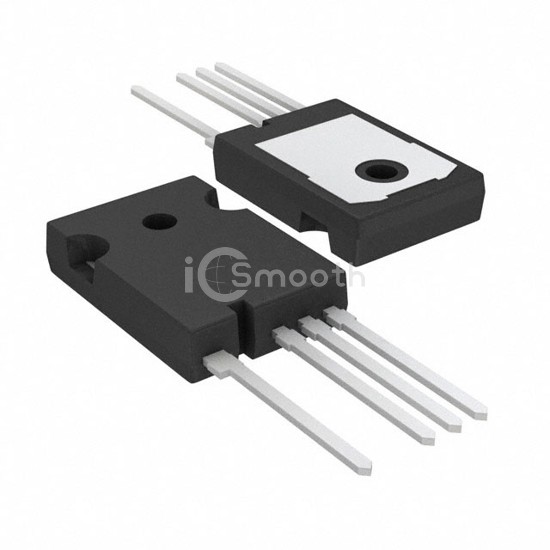

FCH023N65S3L4 - onsemi - Transistors - FETs, MOSFETs - Single
REF: FCH023N65S3L4 onsemi
FCH023N65S3L4

onsemi

MOSFET N-CH 650V 75A TO247

FCH023N65S3L4 is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 650V 75A TO247. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-247-4.

Datasheet Request a Quote

In Stock: 410

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)650 V
Current - Continuous Drain (Id) @ 25°C75A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs23mOhm @ 37.5A, 10V
Vgs(th) (Max) @ Id4.5V @ 7.5mA
Gate Charge (Qg) (Max) @ Vgs222 nC @ 10 V
Vgs (Max)±30V
Input Capacitance (Ciss) (Max) @ Vds7160 pF @ 400 V
FET Feature-
Power Dissipation (Max)595W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-247
Package / CaseTO-247-4
