Name: FCB125N65S3
Brand: onsemi
SKU: FCB125N65S3
Price: 3.25 USD
Availability: InStock

REF: FCB125N65S3 onsemi

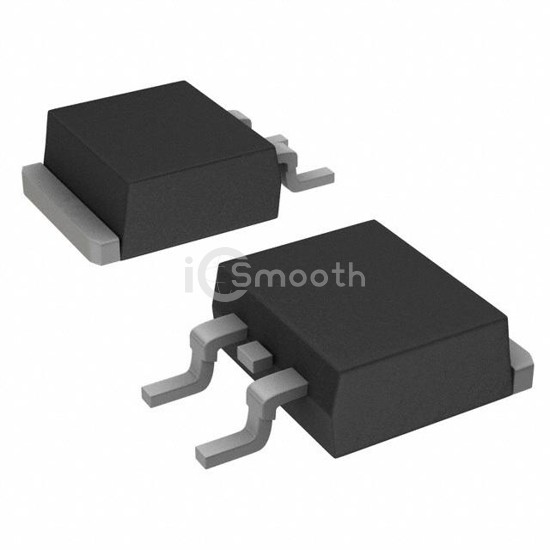

FCB125N65S3

MOSFET N-CH 650V 24A TO263

FCB125N65S3 is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 650V 24A TO263. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB.

Datasheet Request a Quote

In Stock: 7,823

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	650 V
Current - Continuous Drain (Id) @ 25°C	24A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	125mOhm @ 12A, 10V
Vgs(th) (Max) @ Id	4.5V @ 590µA
Gate Charge (Qg) (Max) @ Vgs	46 nC @ 10 V

Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	1940 pF @ 400 V
FET Feature	-
Power Dissipation (Max)	181W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	D²PAK-3 (TO-263-3)
Package / Case	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
