Name: FCA20N60FS
Brand: onsemi
SKU: FCA20N60FS
Availability: InStock

REF: FCA20N60FS onsemi

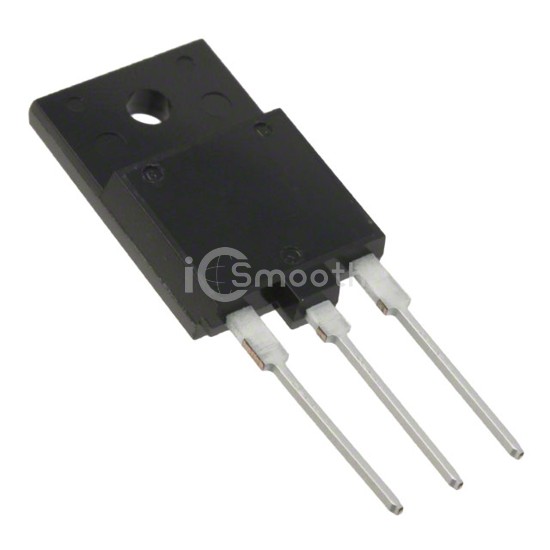

FCA20N60FS

MOSFET N-CH 600V 20A TO3PN

FCA20N60FS is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 600V 20A TO3PN. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-3P-3, SC-65-3.

Datasheet Request a Quote

In Stock: 6,655

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	600 V
Current - Continuous Drain (Id) @ 25°C	20A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	190mOhm @ 10A, 10V
Vgs(th) (Max) @ Id	5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	98 nC @ 10 V

Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	3080 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	208W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-3PN
Package / Case	TO-3P-3, SC-65-3
