Name: FAN3223TMPX
Brand: onsemi
SKU: FAN3223TMPX
Price: 2.17 USD
Availability: InStock

REF: FAN3223TMPX onsemi

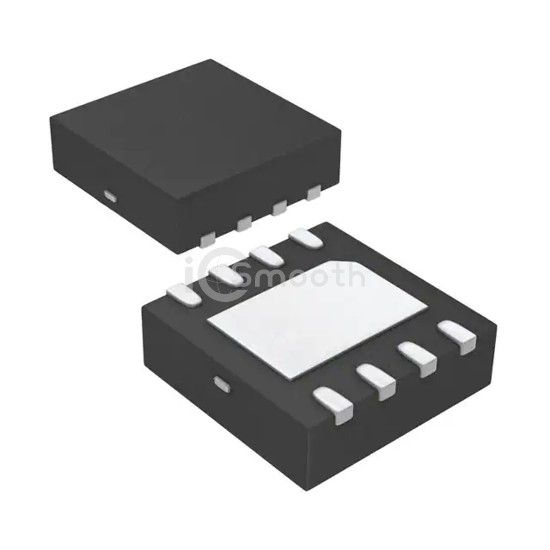

FAN3223TMPX

IC GATE DRVR LOW-SIDE 8MLP

FAN3223TMPX is a PMIC - Gate Drivers manufactured by onsemi. IC GATE DRVR LOW-SIDE 8MLP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply 4.5V ~ 18V, package / case 8-WDFN Exposed Pad.

Request a Quote

In Stock: 3,101

Tiered Pricing USD

1+ $2.1700 —

10+ $1.3560 -38%

25+ $1.1424 -47%

100+ $0.9013 -58%

250+ $0.7828 -64%

500+ $0.7099 -67%

1,000+ $0.6489 -70% BEST

Specifications

15 parameters

Product Status	Active
Driven Configuration	Low-Side
Channel Type	Independent
Number of Drivers	2
Gate Type	N-Channel MOSFET
Voltage - Supply	4.5V ~ 18V
Logic Voltage - VIL, VIH	0.8V, 2V
Current - Peak Output (Source, Sink)	5A, 5A

Input Type	Inverting
High Side Voltage - Max (Bootstrap)	-
Rise / Fall Time (Typ)	12ns, 9ns
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	8-WDFN Exposed Pad
Supplier Device Package	8-MLP (3x3)
