Name: FAN3100TMPX
Brand: onsemi
SKU: FAN3100TMPX
Price: 1.06 USD
Availability: InStock

REF: FAN3100TMPX onsemi

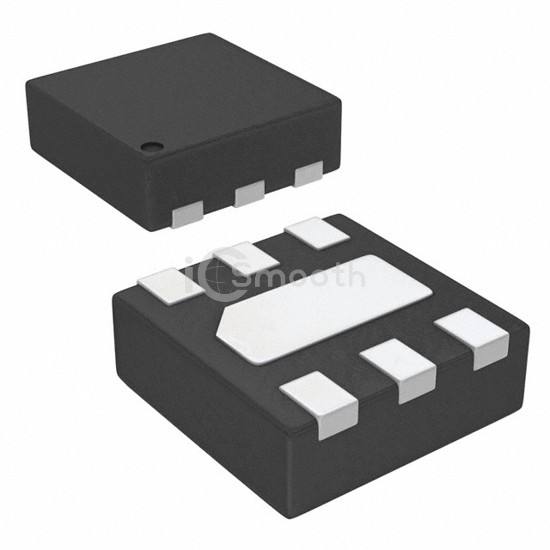

FAN3100TMPX

IC GATE DRVR LOW-SIDE 6MLP

FAN3100TMPX is a PMIC - Gate Drivers manufactured by onsemi. IC GATE DRVR LOW-SIDE 6MLP. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), voltage - supply 4.5V ~ 18V, package / case 6-WDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 9,984

Tiered Pricing USD

1+ $1.0600 —

10+ $0.7630 -28%

25+ $0.6892 -35%

100+ $0.6079 -43%

250+ $0.5691 -46%

500+ $0.5457 -49%

1,000+ $0.5265 -50% BEST

Specifications

15 parameters

Product Status	Active
Driven Configuration	Low-Side
Channel Type	Single
Number of Drivers	1
Gate Type	N-Channel MOSFET
Voltage - Supply	4.5V ~ 18V
Logic Voltage - VIL, VIH	0.8V, 2V
Current - Peak Output (Source, Sink)	3A, 3A

Input Type	Inverting, Non-Inverting
High Side Voltage - Max (Bootstrap)	-
Rise / Fall Time (Typ)	13ns, 9ns
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	6-WDFN Exposed Pad
Supplier Device Package	6-MicroFET (2x2)
