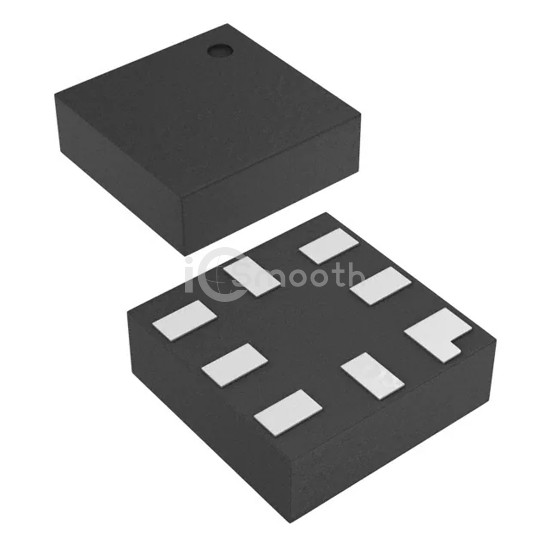

Name: FAN256L8X-F106
Brand: onsemi
SKU: FAN256L8X-F106
Availability: InStock

REF: FAN256L8X-F106 onsemi

FAN256L8X-F106

IC COMPARATOR LV 8-MICROPAK

FAN256L8X-F106 is a Linear - Comparators manufactured by onsemi. IC COMPARATOR LV 8-MICROPAK. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 8-UFQFN, output type Push-Pull, Rail-to-Rail.

Datasheet Request a Quote

In Stock: 4,705

Specifications

16 parameters

Product Status	Active
Type	General Purpose
Number of Elements	2
Output Type	Push-Pull, Rail-to-Rail
Voltage - Supply, Single/Dual (±)	1.6V ~ 5.5V, ±0.8V ~ 2.75V
Voltage - Input Offset (Max)	15mV @ 5.5V
Current - Input Bias (Max)	10pA @ 5.5V
Current - Output (Typ)	-

Current - Quiescent (Max)	17µA
CMRR, PSRR (Typ)	68db CMRR, 80db PSRR
Propagation Delay (Max)	400ns (Typ)
Hysteresis	4mV
Operating Temperature	-40°C ~ 85°C
Package / Case	8-UFQFN
Mounting Type	Surface Mount
Supplier Device Package	8-MicroPak™
