Name: ESDR0524PMUTAG
Brand: onsemi
SKU: ESDR0524PMUTAG
Price: 0.34 USD
Availability: InStock

REF: ESDR0524PMUTAG onsemi

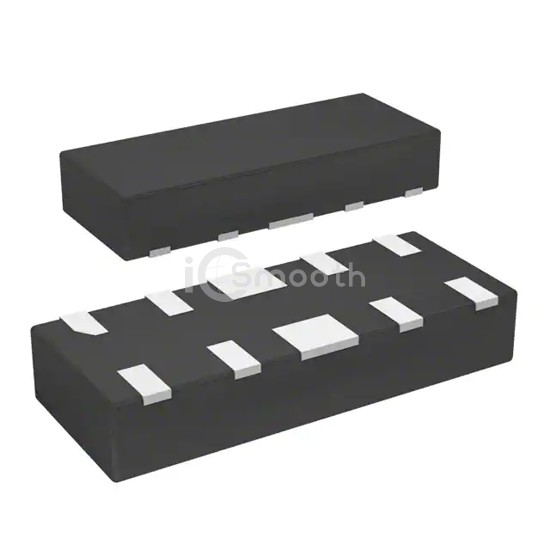

ESDR0524PMUTAG

TVS DIODE 5VWM 15VC 10UDFN

ESDR0524PMUTAG is a TVS - Diodes manufactured by onsemi. TVS DIODE 5VWM 15VC 10UDFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C (TJ), package / case 10-UFDFN.

Datasheet Request a Quote

In Stock: 2,379

Tiered Pricing USD

1+ $0.3400 —

10+ $0.2410 -29%

100+ $0.1790 -47%

500+ $0.1226 -64% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	4
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	5V (Max)
Voltage - Breakdown (Min)	5.5V
Voltage - Clamping (Max) @ Ipp	15V
Current - Peak Pulse (10/1000µs)	1A (8/20µs)

Power - Peak Pulse	-
Power Line Protection	No
Applications	HDMI
Capacitance @ Frequency	0.5pF @ 1MHz
Operating Temperature	-55°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	10-UFDFN
Supplier Device Package	10-UDFN (2.5x1)
