Name: ESDR0502NMUTBG
Brand: onsemi
SKU: ESDR0502NMUTBG
Price: 0.38 USD
Availability: InStock

REF: ESDR0502NMUTBG onsemi

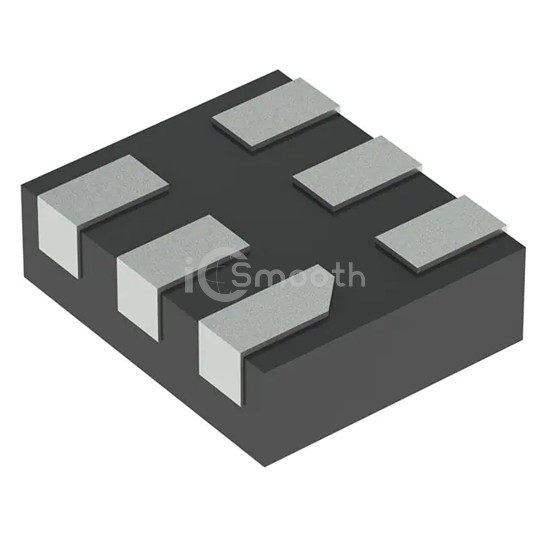

ESDR0502NMUTBG

TVS DIODE 5.5VWM 6UDFN

ESDR0502NMUTBG is a TVS - Diodes manufactured by onsemi. TVS DIODE 5.5VWM 6UDFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case 6-UFDFN.

Datasheet Request a Quote

In Stock: 32,919

Tiered Pricing USD

1+ $0.3800 —

10+ $0.2320 -39%

100+ $0.1459 -62%

500+ $0.1084 -71%

1,000+ $0.0960 -75% BEST

Specifications

16 parameters

Product Status	Active
Type	Steering (Rail to Rail)
Unidirectional Channels	3
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	5.5V (Max)
Voltage - Breakdown (Min)	6V
Voltage - Clamping (Max) @ Ipp	-
Current - Peak Pulse (10/1000µs)	-

Power - Peak Pulse	100W
Power Line Protection	Yes
Applications	Ethernet
Capacitance @ Frequency	0.3pF @ 1MHz
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	6-UFDFN
Supplier Device Package	6-UDFN (1.2x1)
