Name: ESDL4151MX4T5G
Brand: onsemi
SKU: ESDL4151MX4T5G
Price: 0.35 USD
Availability: InStock

REF: ESDL4151MX4T5G onsemi

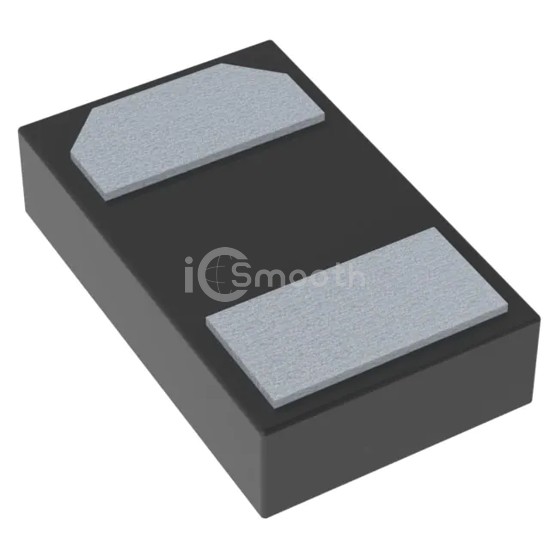

ESDL4151MX4T5G

TVS DIODE 15VWM 26VC 2X3DFN

ESDL4151MX4T5G is a TVS - Diodes manufactured by onsemi. TVS DIODE 15VWM 26VC 2X3DFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 0402 (1006 Metric).

Datasheet Request a Quote

In Stock: 1,312

Tiered Pricing USD

1+ $0.3500 —

10+ $0.2340 -33%

100+ $0.1577 -55% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	-
Bidirectional Channels	1
Voltage - Reverse Standoff (Typ)	15V (Max)
Voltage - Breakdown (Min)	15.5V
Voltage - Clamping (Max) @ Ipp	26V
Current - Peak Pulse (10/1000µs)	47.5A (8/20µs)

Power - Peak Pulse	-
Power Line Protection	No
Applications	USB 2.0, USB 3.0
Capacitance @ Frequency	0.8pF @ 1MHz
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	0402 (1006 Metric)
Supplier Device Package	2-X3DFN (1x0.6)
