Name: ESDL2011PFCT5G
Brand: onsemi
SKU: ESDL2011PFCT5G
Price: 0.34 USD
Availability: InStock

REF: ESDL2011PFCT5G onsemi

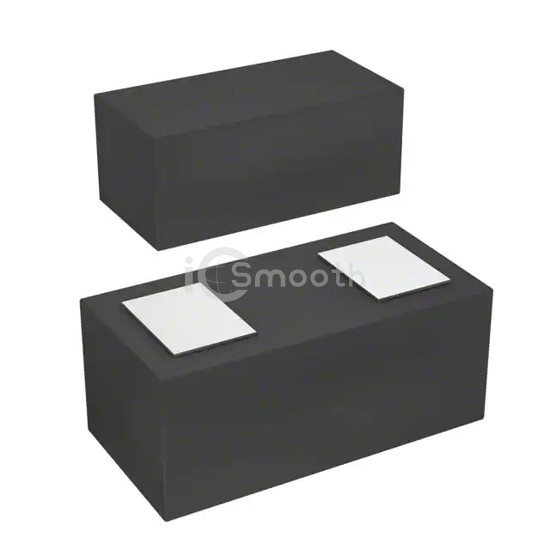

ESDL2011PFCT5G

TVS DIODE 1VWM 6VC 2DFN

ESDL2011PFCT5G is a TVS - Diodes manufactured by onsemi. TVS DIODE 1VWM 6VC 2DFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 0201 (0603 Metric).

Datasheet Request a Quote

In Stock: 262,605

Tiered Pricing USD

1+ $0.3400 —

10+ $0.2070 -39%

100+ $0.1296 -62%

500+ $0.0959 -72%

1,000+ $0.0851 -75%

2,000+ $0.0759 -78%

5,000+ $0.0659 -81% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	-
Bidirectional Channels	1
Voltage - Reverse Standoff (Typ)	1V (Max)
Voltage - Breakdown (Min)	1.4V
Voltage - Clamping (Max) @ Ipp	6V
Current - Peak Pulse (10/1000µs)	8A

Power - Peak Pulse	-
Power Line Protection	No
Applications	USB 3.0
Capacitance @ Frequency	0.17pF @ 1MHz
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	0201 (0603 Metric)
Supplier Device Package	2-DFN (0.6x0.3)
