Name: ESD9X12ST5G
Brand: onsemi
SKU: ESD9X12ST5G
Price: 0.11 USD
Availability: InStock

REF: ESD9X12ST5G onsemi

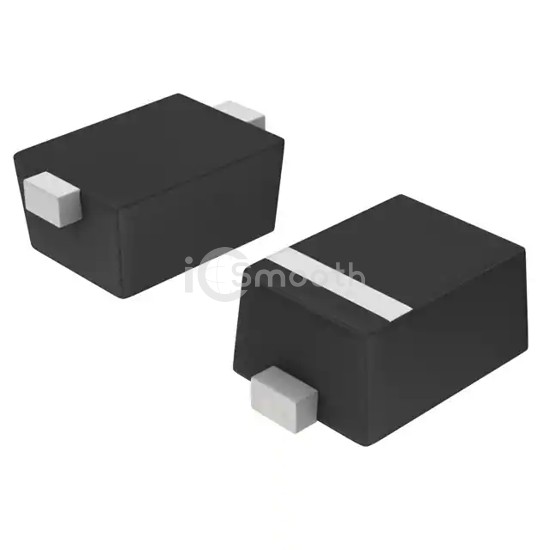

ESD9X12ST5G

TVS DIODE 12VWM 23.7VC SOD923

ESD9X12ST5G is a TVS - Diodes manufactured by onsemi. TVS DIODE 12VWM 23.7VC SOD923. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case SOD-923.

Datasheet Request a Quote

In Stock: 2,745

Tiered Pricing USD

1+ $0.1100 —

10+ $0.0790 -28%

100+ $0.0420 -62%

500+ $0.0415 -62%

1,000+ $0.0410 -63% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	1
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	12V (Max)
Voltage - Breakdown (Min)	13.5V
Voltage - Clamping (Max) @ Ipp	23.7V
Current - Peak Pulse (10/1000µs)	5.9A (8/20µs)

Power - Peak Pulse	140W
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	30pF @ 1MHz
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	SOD-923
Supplier Device Package	SOD-923
