Name: ESD8504GMUTAG
Brand: onsemi
SKU: ESD8504GMUTAG
Price: 0.38 USD
Availability: InStock

REF: ESD8504GMUTAG onsemi

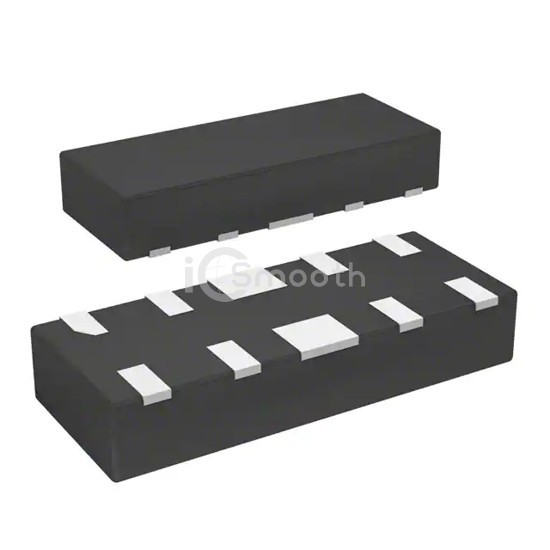

ESD8504GMUTAG

TVS DIODE 3VWM 7VC 10UDFN

ESD8504GMUTAG is a TVS - Diodes manufactured by onsemi. TVS DIODE 3VWM 7VC 10UDFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C (TJ), package / case 10-UFDFN.

Datasheet Request a Quote

In Stock: 8,622

Tiered Pricing USD

1+ $0.3800 —

10+ $0.2930 -23%

100+ $0.1756 -54%

500+ $0.1626 -57%

1,000+ $0.1106 -71% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	4
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	3V (Max)
Voltage - Breakdown (Min)	4V
Voltage - Clamping (Max) @ Ipp	7V
Current - Peak Pulse (10/1000µs)	16A (100ns)

Power - Peak Pulse	-
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	0.39pF @ 1MHz
Operating Temperature	-55°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	10-UFDFN
Supplier Device Package	10-UDFN (2.5x1)
