Name: ESD7504MUTAG
Brand: onsemi
SKU: ESD7504MUTAG
Price: 0.43 USD
Availability: InStock

REF: ESD7504MUTAG onsemi

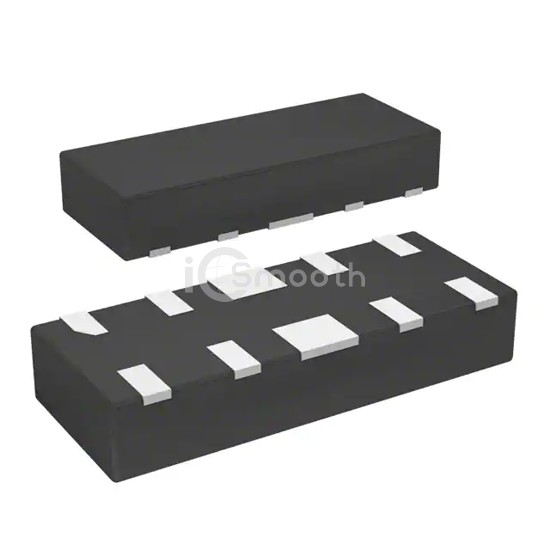

ESD7504MUTAG

TVS DIODE 3.3VWM 10UDFN

ESD7504MUTAG is a TVS - Diodes manufactured by onsemi. TVS DIODE 3.3VWM 10UDFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C (TJ), package / case 10-UFDFN.

Datasheet Request a Quote

In Stock: 9,421

Tiered Pricing USD

1+ $0.4300 —

10+ $0.2900 -33%

100+ $0.1850 -57%

500+ $0.1460 -66%

1,000+ $0.1210 -72% BEST

Specifications

16 parameters

Product Status	Active
Type	Steering (Rail to Rail)
Unidirectional Channels	4
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	3.3V (Max)
Voltage - Breakdown (Min)	4V
Voltage - Clamping (Max) @ Ipp	-
Current - Peak Pulse (10/1000µs)	-

Power - Peak Pulse	-
Power Line Protection	No
Applications	HDMI
Capacitance @ Frequency	0.55pF @ 1MHz
Operating Temperature	-55°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	10-UFDFN
Supplier Device Package	10-UDFN (2.5x1)
