Name: ESD7501MUT5G
Brand: onsemi
SKU: ESD7501MUT5G
Price: 0.27 USD
Availability: InStock

REF: ESD7501MUT5G onsemi

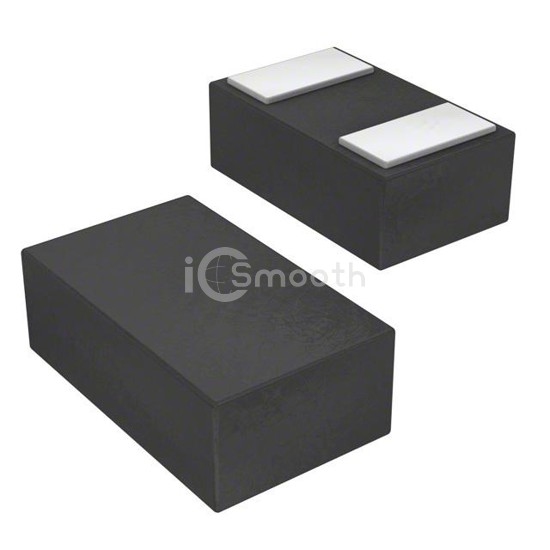

ESD7501MUT5G

TVS DIODE 5VWM 11.5VC 2X3DFN

ESD7501MUT5G is a TVS - Diodes manufactured by onsemi. TVS DIODE 5VWM 11.5VC 2X3DFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 0201 (0603 Metric).

Datasheet Request a Quote

In Stock: 8,391

Tiered Pricing USD

1+ $0.2700 —

10+ $0.1630 -40%

100+ $0.1017 -62%

500+ $0.0748 -72%

1,000+ $0.0661 -76%

2,000+ $0.0587 -78%

5,000+ $0.0507 -81% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	-
Bidirectional Channels	1
Voltage - Reverse Standoff (Typ)	5V (Max)
Voltage - Breakdown (Min)	5.5V
Voltage - Clamping (Max) @ Ipp	11.5V
Current - Peak Pulse (10/1000µs)	-

Power - Peak Pulse	-
Power Line Protection	No
Applications	USB
Capacitance @ Frequency	0.45pF @ 1MHz
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	0201 (0603 Metric)
Supplier Device Package	2-X3DFN (0.62x0.32)
