EC4H09C-TL-H

In Stock: 37,000

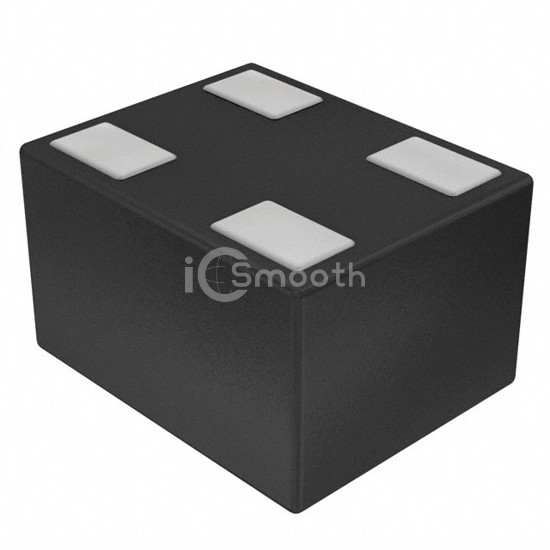

EC4H09C-TL-H - onsemi - Transistors - Bipolar (BJT) - RF
REF: EC4H09C-TL-H onsemi
EC4H09C-TL-H

onsemi

RF TRANS NPN 3.5V 26GHZ ECSP1008

EC4H09C-TL-H is a Transistors - Bipolar (BJT) - RF manufactured by onsemi. RF TRANS NPN 3.5V 26GHZ ECSP1008. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case 4-UFDFN, current - collector (ic) (max) 40mA.

Datasheet Request a Quote

In Stock: 37,000

Specifications

13 parameters
Product StatusObsolete
Transistor TypeNPN
Voltage - Collector Emitter Breakdown (Max)3.5V
Frequency - Transition26GHz
Noise Figure (dB Typ @ f)1.3dB @ 2GHz
Gain15dB
Power - Max120mW
DC Current Gain (hFE) (Min) @ Ic, Vce70 @ 5mA, 1V
Current - Collector (Ic) (Max)40mA
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Package / Case4-UFDFN
Supplier Device Package4-ECSP1008
