EC3H02BA-TL-H

In Stock: 7,194

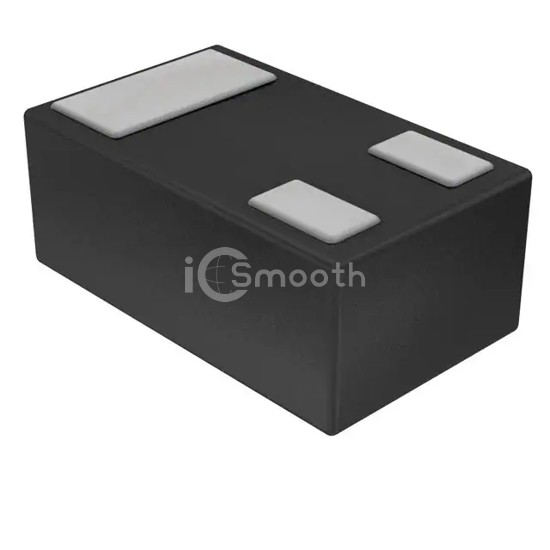

EC3H02BA-TL-H - onsemi - Transistors - Bipolar (BJT) - RF
REF: EC3H02BA-TL-H onsemi
EC3H02BA-TL-H

onsemi

RF TRANS NPN 10V 7GHZ 3-ECSP1006

EC3H02BA-TL-H is a Transistors - Bipolar (BJT) - RF manufactured by onsemi. RF TRANS NPN 10V 7GHZ 3-ECSP1006. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case 3-XFDFN, current - collector (ic) (max) 70mA.

Datasheet Request a Quote

In Stock: 7,194

Specifications

13 parameters
Product StatusObsolete
Transistor TypeNPN
Voltage - Collector Emitter Breakdown (Max)10V
Frequency - Transition7GHz
Noise Figure (dB Typ @ f)1dB @ 1GHz
Gain8.5dB
Power - Max100mW
DC Current Gain (hFE) (Min) @ Ic, Vce120 @ 20mA, 5V
Current - Collector (Ic) (Max)70mA
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Package / Case3-XFDFN
Supplier Device PackageECSP1006-3
