DM74LS09N

In Stock: 4,692
DM74LS09N - onsemi - Logic - Gates and Inverters
REF: DM74LS09N onsemi
DM74LS09N

onsemi

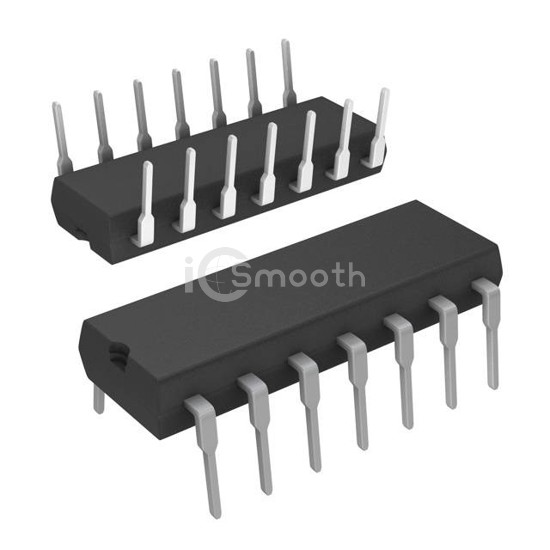

IC GATE AND OP COL 4CH 2IN 14DIP

DM74LS09N is a Logic - Gates and Inverters manufactured by onsemi. IC GATE AND OP COL 4CH 2IN 14DIP. Key specifications: mounting type Through Hole, operating temperature 0°C ~ 70°C, voltage - supply 4.75V ~ 5.25V, package / case 14-DIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 4,692

Specifications

15 parameters
Product StatusObsolete
Logic TypeAND Gate
Number of Circuits4
Number of Inputs2
FeaturesOpen Collector
Voltage - Supply4.75V ~ 5.25V
Current - Quiescent (Max)-
Current - Output High, Low-, 8mA
Logic Level - Low0.8V
Logic Level - High2V
Max Propagation Delay @ V, Max CL45ns @ 5V, 50pF
Operating Temperature0°C ~ 70°C
Mounting TypeThrough Hole
Supplier Device Package14-MDIP
Package / Case14-DIP (0.300", 7.62mm)
