DM74AS74SJ

In Stock: 3,749

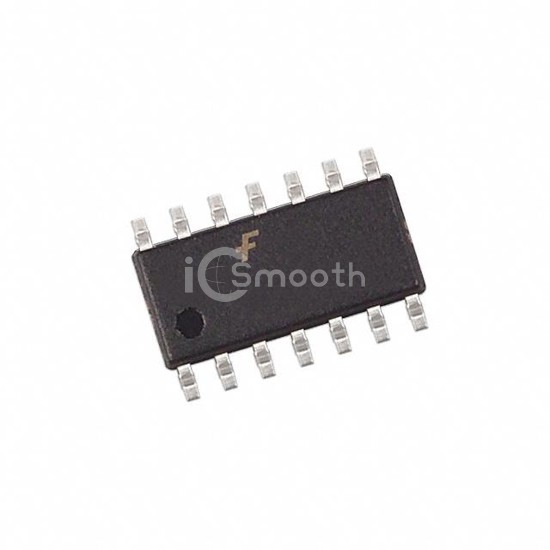

DM74AS74SJ - onsemi - Logic - Flip Flops
REF: DM74AS74SJ onsemi
DM74AS74SJ

onsemi

IC FF D-TYPE DUAL 1BIT 14SOP

DM74AS74SJ is a Logic - Flip Flops manufactured by onsemi. IC FF D-TYPE DUAL 1BIT 14SOP. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 70°C (TA), voltage - supply 4.5V ~ 5.5V, package / case 14-SOIC (0.209", 5.30mm Width).

Datasheet Request a Quote

In Stock: 3,749

Specifications

17 parameters
Product StatusObsolete
FunctionSet(Preset) and Reset
TypeD-Type
Output TypeComplementary
Number of Elements2
Number of Bits per Element1
Clock Frequency105 MHz
Max Propagation Delay @ V, Max CL9ns @ 5V, 50pF
Trigger TypePositive Edge
Current - Output High, Low2mA, 20mA
Voltage - Supply4.5V ~ 5.5V
Current - Quiescent (Iq)16 mA
Input Capacitance-
Operating Temperature0°C ~ 70°C (TA)
Mounting TypeSurface Mount
Supplier Device Package14-SOP
Package / Case14-SOIC (0.209", 5.30mm Width)
