DM74ALS10ASJX

In Stock: 1,604

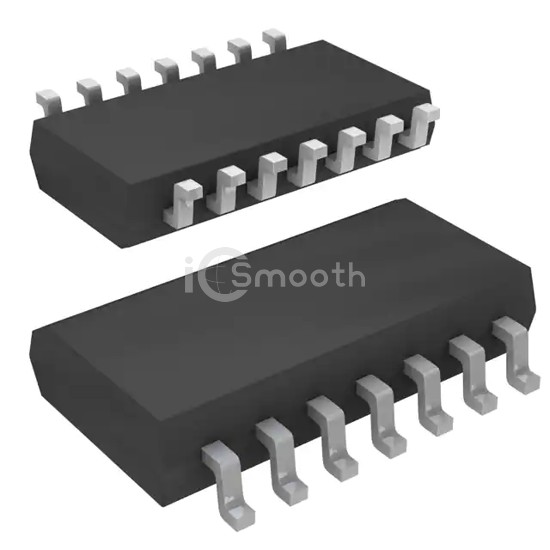

DM74ALS10ASJX - onsemi - Logic - Gates and Inverters
REF: DM74ALS10ASJX onsemi
DM74ALS10ASJX

onsemi

IC GATE NAND 3CH 3-INP 14SOP

DM74ALS10ASJX is a Logic - Gates and Inverters manufactured by onsemi. IC GATE NAND 3CH 3-INP 14SOP. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 70°C, voltage - supply 4.5V ~ 5.5V, package / case 14-SOIC (0.209", 5.30mm Width).

Datasheet Request a Quote

In Stock: 1,604

Tiered Pricing USD
2,000+ $0.3357 —
4,000+ $0.3083 -8%
6,000+ $0.2944 -12%
10,000+ $0.2788 -17%
14,000+ $0.2750 -18% BEST

Specifications

15 parameters
Product StatusObsolete
Logic TypeNAND Gate
Number of Circuits3
Number of Inputs3
Features-
Voltage - Supply4.5V ~ 5.5V
Current - Quiescent (Max)-
Current - Output High, Low400µA, 8mA
Logic Level - Low0.8V
Logic Level - High2V
Max Propagation Delay @ V, Max CL11ns @ 5V, 50pF
Operating Temperature0°C ~ 70°C
Mounting TypeSurface Mount
Supplier Device Package14-SOP
Package / Case14-SOIC (0.209", 5.30mm Width)
