DM74ALS02SJX

In Stock: 6,204

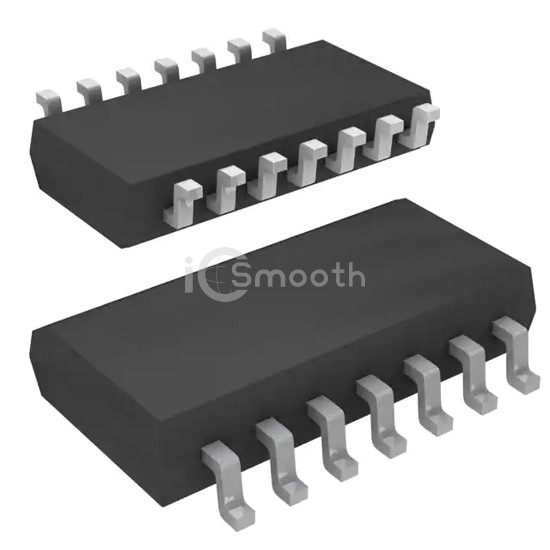

DM74ALS02SJX - onsemi - Logic - Gates and Inverters
REF: DM74ALS02SJX onsemi
DM74ALS02SJX

onsemi

IC GATE NOR 4CH 2-INP 14SOP

DM74ALS02SJX is a Logic - Gates and Inverters manufactured by onsemi. IC GATE NOR 4CH 2-INP 14SOP. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 70°C, voltage - supply 4.5V ~ 5.5V, package / case 14-SOIC (0.209", 5.30mm Width).

Datasheet Request a Quote

In Stock: 6,204

Specifications

15 parameters
Product StatusObsolete
Logic TypeNOR Gate
Number of Circuits4
Number of Inputs2
Features-
Voltage - Supply4.5V ~ 5.5V
Current - Quiescent (Max)-
Current - Output High, Low400µA, 8mA
Logic Level - Low0.8V
Logic Level - High2V
Max Propagation Delay @ V, Max CL12ns @ 5V, 50pF
Operating Temperature0°C ~ 70°C
Mounting TypeSurface Mount
Supplier Device Package14-SOP
Package / Case14-SOIC (0.209", 5.30mm Width)
