CS8161YTHA5

In Stock: 6,973

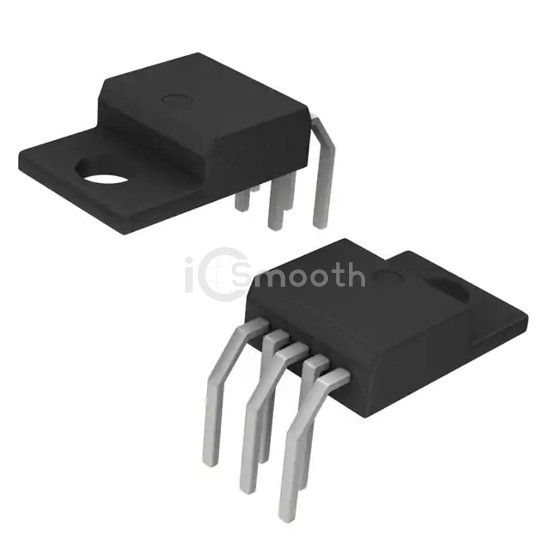

CS8161YTHA5 - onsemi - PMIC - Voltage Regulators - Linear
REF: CS8161YTHA5 onsemi
CS8161YTHA5

onsemi

IC REG LIN 12V/5V TO220-5

CS8161YTHA5 is a PMIC - Voltage Regulators - Linear manufactured by onsemi. IC REG LIN 12V/5V TO220-5. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, package / case TO-220-5 Formed Leads, current - supply (max) 75 mA.

Datasheet Request a Quote

In Stock: 6,973

Specifications

18 parameters
Product StatusObsolete
Output ConfigurationPositive
Output TypeFixed
Number of Regulators2
Voltage - Input (Max)26V
Voltage - Output (Min/Fixed)12V, 5V
Voltage - Output (Max)-
Voltage Dropout (Max)0.6V @ 400mA, 0.6V @ 200mA
Current - Output400mA, 200mA
Current - Quiescent (Iq)10 mA
Current - Supply (Max)75 mA
PSRR42dB (120Hz)
Control FeaturesEnable
Protection FeaturesOver Temperature, Over Voltage, Short Circuit
Operating Temperature-40°C ~ 125°C
Mounting TypeThrough Hole
Package / CaseTO-220-5 Formed Leads
Supplier Device PackageTO-220-5 Horizontal
