CS8156YTHA5

In Stock: 8,915
CS8156YTHA5 - onsemi - PMIC - Voltage Regulators - Linear
REF: CS8156YTHA5 onsemi

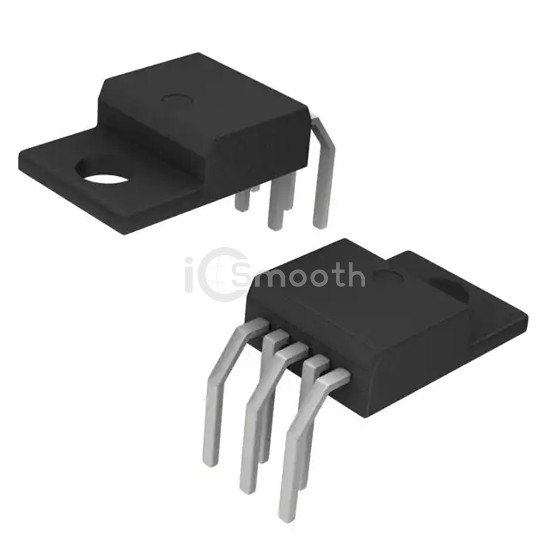

CS8156YTHA5

onsemi

IC REG LIN 12V/5V TO220-5

CS8156YTHA5 is a PMIC - Voltage Regulators - Linear manufactured by onsemi. IC REG LIN 12V/5V TO220-5. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, package / case TO-220-5 Formed Leads, current - supply (max) 250 mA.

Datasheet Request a Quote

In Stock: 8,915

Specifications

18 parameters
Product StatusObsolete
Output ConfigurationPositive
Output TypeFixed
Number of Regulators2
Voltage - Input (Max)26V
Voltage - Output (Min/Fixed)12V, 5V
Voltage - Output (Max)-
Voltage Dropout (Max)1V @ 750mA, 0.6V @ 100mA
Current - Output750mA, 100mA
Current - Quiescent (Iq)125 mA
Current - Supply (Max)250 mA
PSRR70dB (120Hz)
Control FeaturesEnable
Protection FeaturesOver Temperature, Over Voltage, Short Circuit
Operating Temperature-40°C ~ 125°C
Mounting TypeThrough Hole
Package / CaseTO-220-5 Formed Leads
Supplier Device PackageTO-220-5 Horizontal
