CS8156YT5G

In Stock: 6,740

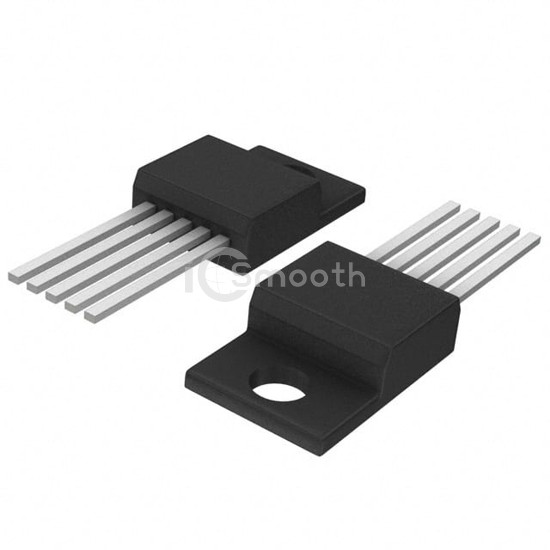

CS8156YT5G - onsemi - PMIC - Voltage Regulators - Linear
REF: CS8156YT5G onsemi
CS8156YT5G

onsemi

IC REG LINEAR 12V/5V TO220-5

CS8156YT5G is a PMIC - Voltage Regulators - Linear manufactured by onsemi. IC REG LINEAR 12V/5V TO220-5. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, package / case TO-220-5, current - supply (max) 250 mA.

Datasheet Request a Quote

In Stock: 6,740

Specifications

18 parameters
Product StatusObsolete
Output ConfigurationPositive
Output TypeFixed
Number of Regulators2
Voltage - Input (Max)26V
Voltage - Output (Min/Fixed)12V, 5V
Voltage - Output (Max)-
Voltage Dropout (Max)1V @ 750mA, 0.6V @ 100mA
Current - Output750mA, 100mA
Current - Quiescent (Iq)125 mA
Current - Supply (Max)250 mA
PSRR70dB (120Hz)
Control FeaturesEnable
Protection FeaturesOver Temperature, Over Voltage, Short Circuit
Operating Temperature-40°C ~ 125°C
Mounting TypeThrough Hole
Package / CaseTO-220-5
Supplier Device PackageTO-220-5
