CS8147YT5

In Stock: 2,197

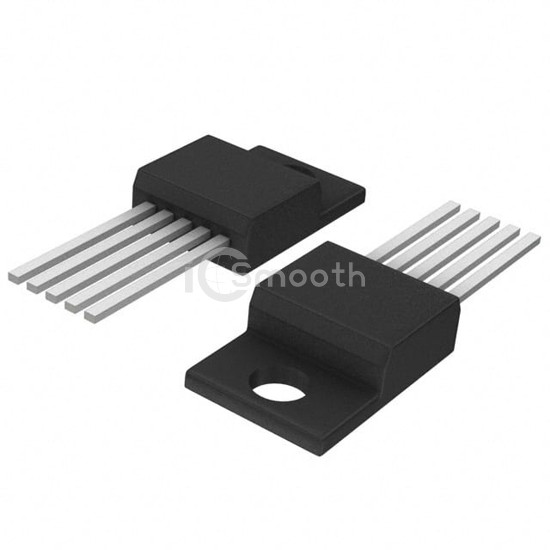

CS8147YT5 - onsemi - PMIC - Voltage Regulators - Linear
REF: CS8147YT5 onsemi
CS8147YT5

onsemi

IC REG LINEAR 10V/5V TO220-5

CS8147YT5 is a PMIC - Voltage Regulators - Linear manufactured by onsemi. IC REG LINEAR 10V/5V TO220-5. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, package / case TO-220-5, current - supply (max) 120 mA.

Datasheet Request a Quote

In Stock: 2,197

Specifications

18 parameters
Product StatusObsolete
Output ConfigurationPositive
Output TypeFixed
Number of Regulators2
Voltage - Input (Max)26V
Voltage - Output (Min/Fixed)10V, 5V
Voltage - Output (Max)-
Voltage Dropout (Max)0.7V @ 500mA, 2.5V @ 70mA
Current - Output500mA, 70mA
Current - Quiescent (Iq)7 mA
Current - Supply (Max)120 mA
PSRR-
Control FeaturesEnable
Protection FeaturesOver Temperature, Over Voltage, Reverse Polarity, Short Circuit
Operating Temperature-40°C ~ 125°C
Mounting TypeThrough Hole
Package / CaseTO-220-5
Supplier Device PackageTO-220-5
