CS8126-1YTHA5G

In Stock: 2,504

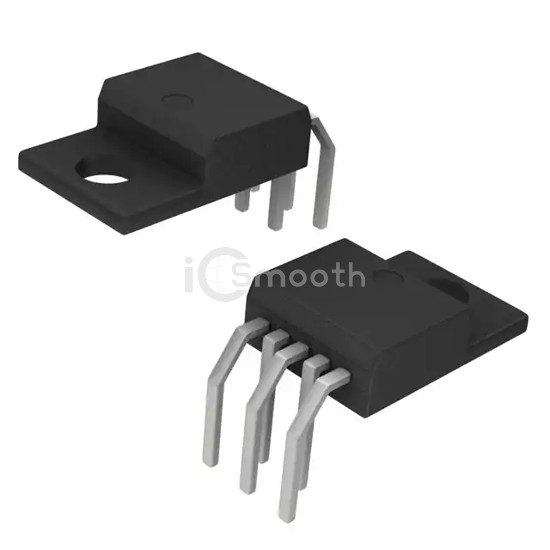

CS8126-1YTHA5G - onsemi - PMIC - Voltage Regulators - Linear
REF: CS8126-1YTHA5G onsemi
CS8126-1YTHA5G

onsemi

IC REG LIN 5V 750MA TO220-5

CS8126-1YTHA5G is a PMIC - Voltage Regulators - Linear manufactured by onsemi. IC REG LIN 5V 750MA TO220-5. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, package / case TO-220-5 Formed Leads, current - supply (max) 100 mA.

Datasheet Request a Quote

In Stock: 2,504

Specifications

18 parameters
Product StatusObsolete
Output ConfigurationPositive
Output TypeFixed
Number of Regulators1
Voltage - Input (Max)26V
Voltage - Output (Min/Fixed)5V
Voltage - Output (Max)-
Voltage Dropout (Max)0.6V @ 500mA
Current - Output750mA
Current - Quiescent (Iq)70 mA
Current - Supply (Max)100 mA
PSRR75dB (120Hz)
Control FeaturesReset
Protection FeaturesOver Temperature, Reverse Polarity, Short Circuit
Operating Temperature-40°C ~ 125°C
Mounting TypeThrough Hole
Package / CaseTO-220-5 Formed Leads
Supplier Device PackageTO-220-5 Horizontal
