Name: CS8120YDPR5
Brand: onsemi
SKU: CS8120YDPR5
Price: 2.34 USD
Availability: InStock

REF: CS8120YDPR5 onsemi

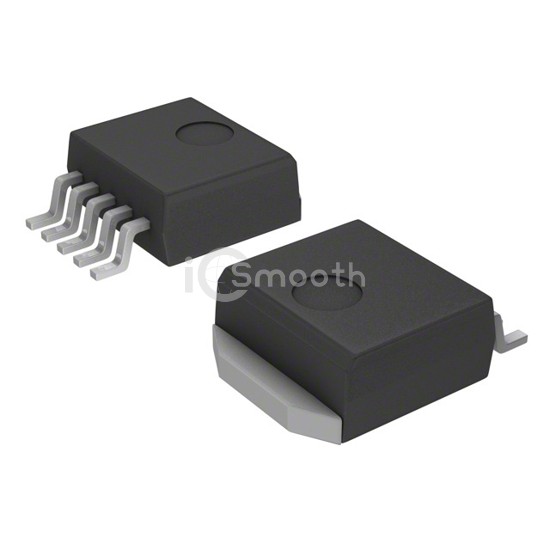

CS8120YDPR5

IC REG LINEAR 5V 300MA D2PAK-5

CS8120YDPR5 is a PMIC - Voltage Regulators - Linear manufactured by onsemi. IC REG LINEAR 5V 300MA D2PAK-5. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case TO-263-6, D²Pak (5 Leads + Tab), TO-263BA, current - supply (max) 15 mA.

Datasheet Request a Quote

In Stock: 75,248

Specifications

18 parameters

Product Status	Obsolete
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	1
Voltage - Input (Max)	26V
Voltage - Output (Min/Fixed)	5V
Voltage - Output (Max)	-
Voltage Dropout (Max)	1.5V @ 200mA
Current - Output	300mA

Current - Quiescent (Iq)	650 µA
Current - Supply (Max)	15 mA
PSRR	70dB (120Hz)
Control Features	Enable, Reset
Protection Features	Over Temperature, Over Voltage, Short Circuit
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	TO-263-6, D²Pak (5 Leads + Tab), TO-263BA
Supplier Device Package	D2PAK-5
