CS8101YTVA5

In Stock: 5,950

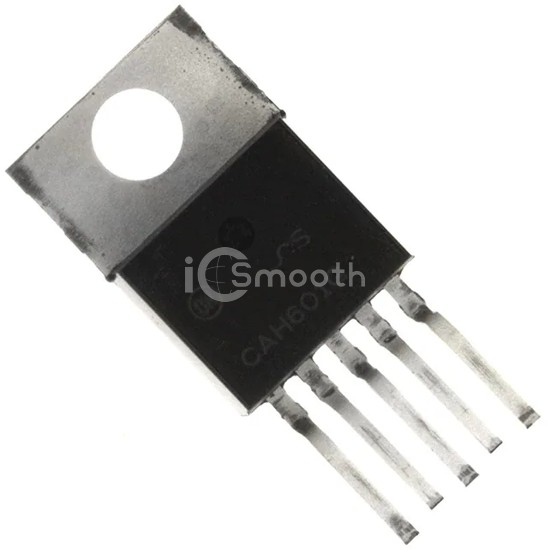

CS8101YTVA5 - onsemi - PMIC - Voltage Regulators - Linear
REF: CS8101YTVA5 onsemi
CS8101YTVA5

onsemi

IC REG LIN 5V 100MA TO220-5

CS8101YTVA5 is a PMIC - Voltage Regulators - Linear manufactured by onsemi. IC REG LIN 5V 100MA TO220-5. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, package / case TO-220-5 Formed Leads, current - supply (max) 20 mA.

Datasheet Request a Quote

In Stock: 5,950

Specifications

18 parameters
Product StatusObsolete
Output ConfigurationPositive
Output TypeFixed
Number of Regulators1
Voltage - Input (Max)30V
Voltage - Output (Min/Fixed)5V
Voltage - Output (Max)-
Voltage Dropout (Max)0.6V @ 100mA
Current - Output100mA
Current - Quiescent (Iq)140 µA
Current - Supply (Max)20 mA
PSRR75dB (120Hz)
Control FeaturesEnable, Reset
Protection FeaturesOver Temperature, Over Voltage, Reverse Polarity, Short Circuit
Operating Temperature-40°C ~ 125°C
Mounting TypeThrough Hole
Package / CaseTO-220-5 Formed Leads
Supplier Device PackageTO-220-5 Vertical
