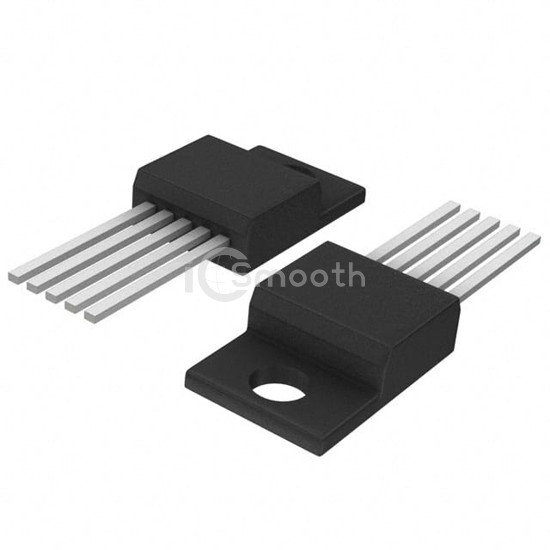

CS5258-1GT5

In Stock: 2,100
CS5258-1GT5 - onsemi - PMIC - Voltage Regulators - Linear
REF: CS5258-1GT5 onsemi
CS5258-1GT5

onsemi

IC REG LINEAR POS ADJ 8A TO220-5

CS5258-1GT5 is a PMIC - Voltage Regulators - Linear manufactured by onsemi. IC REG LINEAR POS ADJ 8A TO220-5. Key specifications: mounting type Through Hole, operating temperature 0°C ~ 70°C, package / case TO-220-5, current - output 8A.

Datasheet Request a Quote

In Stock: 2,100

Specifications

18 parameters
Product StatusObsolete
Output ConfigurationPositive
Output TypeAdjustable
Number of Regulators1
Voltage - Input (Max)13V
Voltage - Output (Min/Fixed)1.25V
Voltage - Output (Max)5V
Voltage Dropout (Max)1.3V @ 8A
Current - Output8A
Current - Quiescent (Iq)10 mA
Current - Supply (Max)-
PSRR80dB (120Hz)
Control Features-
Protection FeaturesOver Current, Over Temperature, Short Circuit
Operating Temperature0°C ~ 70°C
Mounting TypeThrough Hole
Package / CaseTO-220-5
Supplier Device PackageTO-220-5
