CS5206-1GT3

In Stock: 1,600

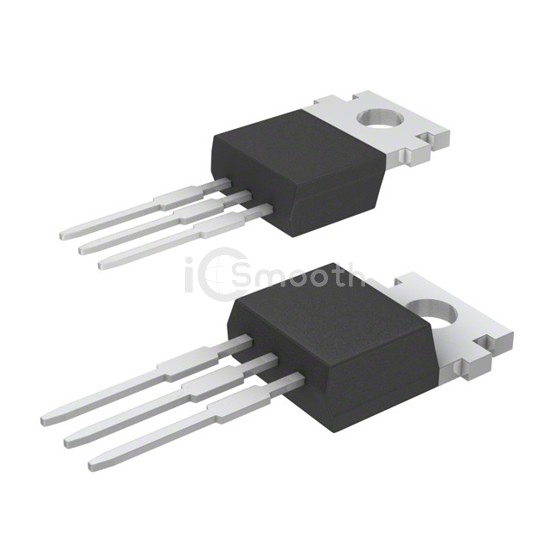

CS5206-1GT3 - onsemi - PMIC - Voltage Regulators - Linear
REF: CS5206-1GT3 onsemi
CS5206-1GT3

onsemi

IC REG LINEAR POS ADJ 6A TO220-3

CS5206-1GT3 is a PMIC - Voltage Regulators - Linear manufactured by onsemi. IC REG LINEAR POS ADJ 6A TO220-3. Key specifications: mounting type Through Hole, operating temperature 0°C ~ 70°C, package / case TO-220-3, current - output 6A.

Datasheet Request a Quote

In Stock: 1,600

Specifications

18 parameters
Product StatusObsolete
Output ConfigurationPositive
Output TypeAdjustable
Number of Regulators1
Voltage - Input (Max)17V
Voltage - Output (Min/Fixed)1.25V
Voltage - Output (Max)13V
Voltage Dropout (Max)1.4V @ 6A
Current - Output6A
Current - Quiescent (Iq)-
Current - Supply (Max)-
PSRR82dB (120Hz)
Control Features-
Protection FeaturesOver Current, Over Temperature
Operating Temperature0°C ~ 70°C
Mounting TypeThrough Hole
Package / CaseTO-220-3
Supplier Device PackageTO-220-3
