Name: CPH3360-TL-W
Brand: onsemi
SKU: CPH3360-TL-W
Availability: InStock

REF: CPH3360-TL-W onsemi

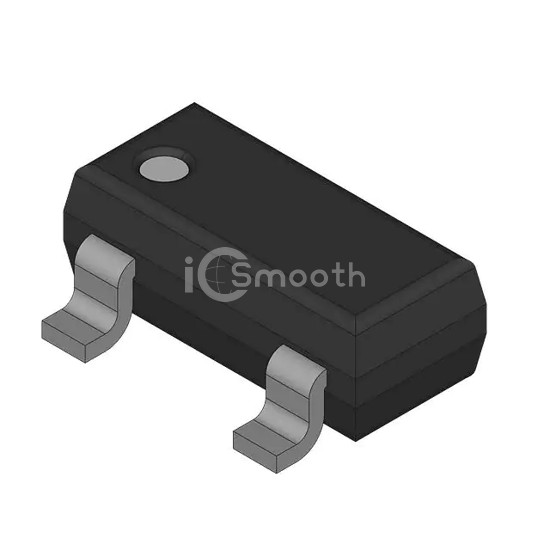

CPH3360-TL-W

CPH3360 - P-CHANNEL POWER MOSFET

CPH3360-TL-W is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. CPH3360 - P-CHANNEL POWER MOSFET. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-236-3, SC-59, SOT-23-3.

Datasheet Request a Quote

In Stock: 7,528

Specifications

17 parameters

Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	1.6A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4V, 10V
Rds On (Max) @ Id, Vgs	303mOhm @ 800mA, 10V
Vgs(th) (Max) @ Id	2.6V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	2.2 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	82 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	900mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	3-CPH
Package / Case	TO-236-3, SC-59, SOT-23-3
