CPH3324-TL-E

In Stock: 2,599

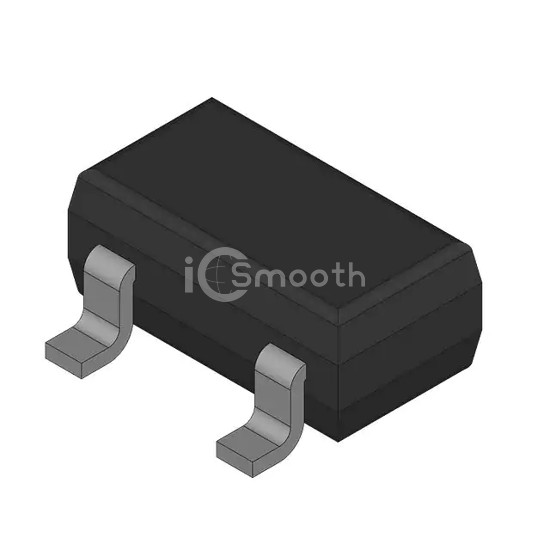

CPH3324-TL-E - onsemi - Transistors - FETs, MOSFETs - Single
REF: CPH3324-TL-E onsemi
CPH3324-TL-E

onsemi

MOSFET P-CH 60V 1.2A 3CPH

CPH3324-TL-E is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET P-CH 60V 1.2A 3CPH. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case SC-96.

Request a Quote

In Stock: 2,599

Specifications

17 parameters
Product StatusObsolete
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)60 V
Current - Continuous Drain (Id) @ 25°C1.2A (Ta)
Drive Voltage (Max Rds On, Min Rds On)-
Rds On (Max) @ Id, Vgs530mOhm @ 600mA, 10V
Vgs(th) (Max) @ Id-
Gate Charge (Qg) (Max) @ Vgs6.4 nC @ 10 V
Vgs (Max)-
Input Capacitance (Ciss) (Max) @ Vds265 pF @ 20 V
FET Feature-
Power Dissipation (Max)1W (Ta)
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package3-CPH
Package / CaseSC-96
