BXL4001

In Stock: 8,692

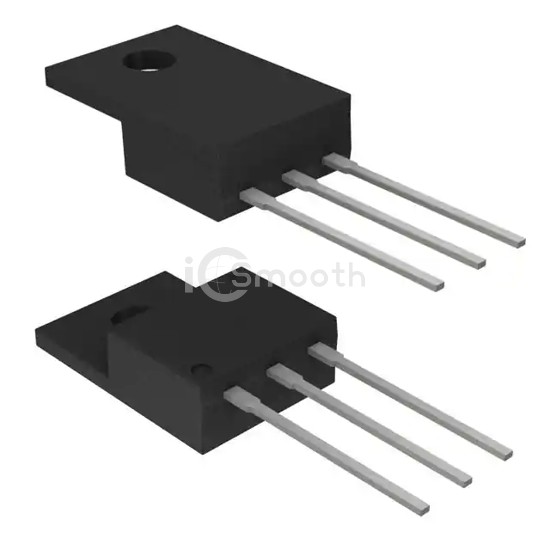

BXL4001 - onsemi - Transistors - FETs, MOSFETs - Single
REF: BXL4001 onsemi
BXL4001

onsemi

MOSFET N-CH 75V 85A TO220

BXL4001 is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 75V 85A TO220. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case TO-220-3.

Datasheet Request a Quote

In Stock: 8,692

Specifications

17 parameters
Product StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)75 V
Current - Continuous Drain (Id) @ 25°C85A (Ta)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs12.4mOhm @ 43A, 10V
Vgs(th) (Max) @ Id4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs115 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds6700 pF @ 20 V
FET Feature-
Power Dissipation (Max)1.75W (Ta), 75W (Tc)
Operating Temperature150°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-220(LS)
Package / CaseTO-220-3
