BSS138W

In Stock: 8,668

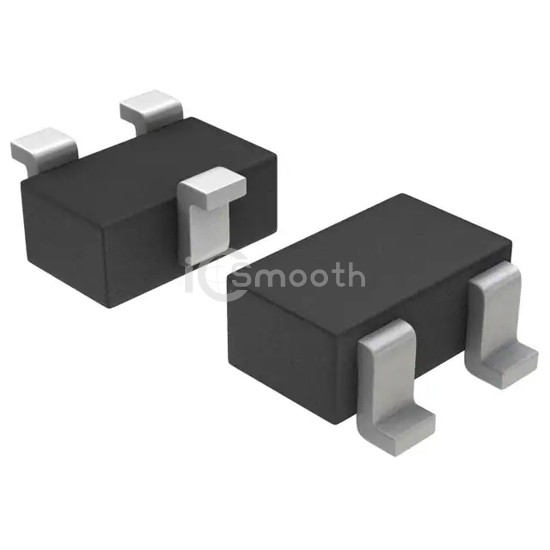

BSS138W - onsemi - Transistors - FETs, MOSFETs - Single
REF: BSS138W onsemi
BSS138W

onsemi

MOSFET N-CH 50V 210MA SC70

BSS138W is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 50V 210MA SC70. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case SC-70, SOT-323.

Datasheet Request a Quote

In Stock: 8,668

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)50 V
Current - Continuous Drain (Id) @ 25°C210mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs3.5Ohm @ 220mA, 10V
Vgs(th) (Max) @ Id1.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs1.1 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds38 pF @ 25 V
FET Feature-
Power Dissipation (Max)340mW (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageSOT-323
Package / CaseSC-70, SOT-323
