Name: BMS3004-1E
Brand: onsemi
SKU: BMS3004-1E
Availability: InStock

REF: BMS3004-1E onsemi

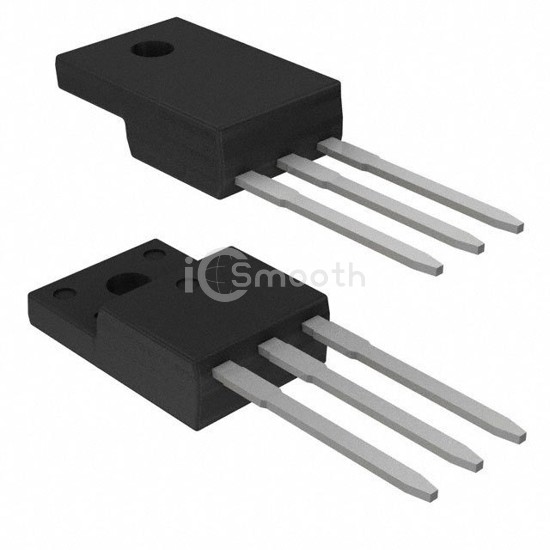

BMS3004-1E

MOSFET P-CH 75V 68A TO220F-3SG

BMS3004-1E is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET P-CH 75V 68A TO220F-3SG. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-220-3 Full Pack.

Datasheet Request a Quote

In Stock: 7,966

Specifications

17 parameters

Product Status	Obsolete
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	75 V
Current - Continuous Drain (Id) @ 25°C	68A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4V, 10V
Rds On (Max) @ Id, Vgs	8.5mOhm @ 34A, 10V
Vgs(th) (Max) @ Id	-
Gate Charge (Qg) (Max) @ Vgs	300 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	13400 pF @ 20 V
FET Feature	-
Power Dissipation (Max)	2W (Ta), 40W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-220F-3SG
Package / Case	TO-220-3 Full Pack
