BDC01DRL1G

In Stock: 8,703

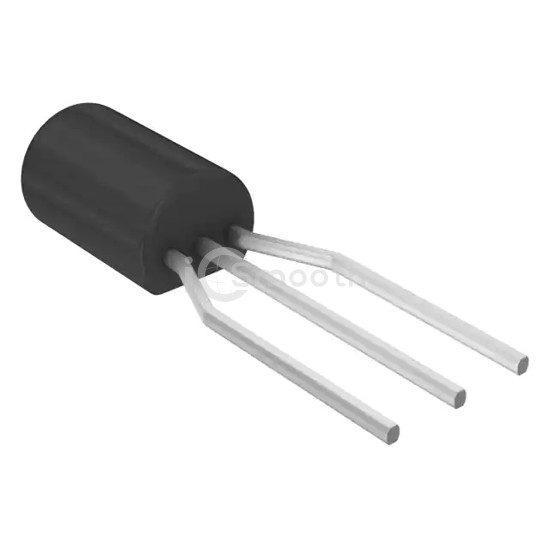

BDC01DRL1G - onsemi - Transistors - Bipolar (BJT) - Single
REF: BDC01DRL1G onsemi
BDC01DRL1G

onsemi

TRANS NPN 100V 0.5A TO92

BDC01DRL1G is a Transistors - Bipolar (BJT) - Single manufactured by onsemi. TRANS NPN 100V 0.5A TO92. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-226-3, TO-92-3 Long Body (Formed Leads), current - collector (ic) (max) 500 mA.

Datasheet Request a Quote

In Stock: 8,703

Specifications

13 parameters
Product StatusObsolete
Transistor TypeNPN
Current - Collector (Ic) (Max)500 mA
Voltage - Collector Emitter Breakdown (Max)100 V
Vce Saturation (Max) @ Ib, Ic700mV @ 100mA, 1A
Current - Collector Cutoff (Max)100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce40 @ 100mA, 1V
Power - Max1 W
Frequency - Transition50MHz
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-226-3, TO-92-3 Long Body (Formed Leads)
Supplier Device PackageTO-92 (TO-226)
