AX8052F143-2-TX30

In Stock: 3,846

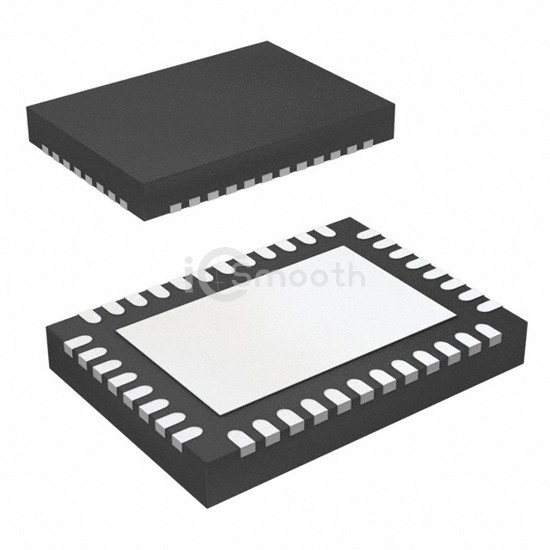

AX8052F143-2-TX30 - onsemi - RF Transceiver ICs
REF: AX8052F143-2-TX30 onsemi
AX8052F143-2-TX30

onsemi

IC RF TXRX+MCU ISM<1GHZ 40VFQFN

AX8052F143-2-TX30 is a RF Transceiver ICs manufactured by onsemi. IC RF TXRX+MCU ISM<1GHZ 40VFQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 1.8V ~ 3.6V, package / case 40-VFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 3,846

Specifications

19 parameters
Product StatusObsolete
TypeTxRx + MCU
RF Family/StandardGeneral ISM < 1GHz
Protocol-
Modulation4FSK, ASK, FSK, GFSK, GMSK, MSK
Frequency27MHz ~ 1.05GHz
Data Rate (Max)125kbps
Power - Output16dBm
Sensitivity-137dBm
Memory Size64kB Flash, 8.25kB SRAM
Serial InterfacesSPI, UART
GPIO19
Voltage - Supply1.8V ~ 3.6V
Current - Receiving6.5mA ~ 11mA
Current - Transmitting7.5mA ~ 48mA
Operating Temperature-40°C ~ 85°C
Mounting TypeSurface Mount
Package / Case40-VFQFN Exposed Pad
Supplier Device Package40-QFN (7x5)
