AX8052F131-2-TX30

In Stock: 6,873

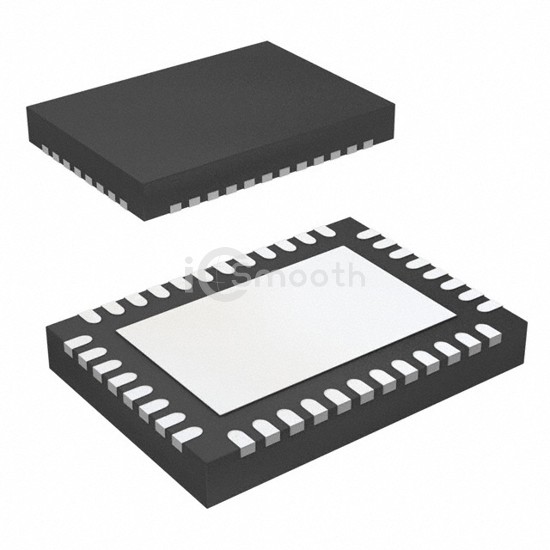

AX8052F131-2-TX30 - onsemi - RF Transceiver ICs
REF: AX8052F131-2-TX30 onsemi
AX8052F131-2-TX30

onsemi

IC RF TXRX+MCU 802.15.4 40VFQFN

AX8052F131-2-TX30 is a RF Transceiver ICs manufactured by onsemi. IC RF TXRX+MCU 802.15.4 40VFQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 2.2V ~ 3.6V, package / case 40-VFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 6,873

Specifications

19 parameters
Product StatusObsolete
TypeTxRx + MCU
RF Family/Standard802.15.4, General ISM < 1GHz
ProtocolZigbee®
Modulation4FSK, ASK, FSK, GFSK, MSK, O-QPSK, PSK
Frequency400MHz ~ 470MHz, 800MHz ~ 940MHz
Data Rate (Max)2Mbps
Power - Output16dBm
Sensitivity-116dBm
Memory Size64kB Flash, 8.25kB SRAM
Serial InterfacesSPI, UART
GPIO21
Voltage - Supply2.2V ~ 3.6V
Current - Receiving-
Current - Transmitting13mA ~ 45mA
Operating Temperature-40°C ~ 85°C
Mounting TypeSurface Mount
Package / Case40-VFQFN Exposed Pad
Supplier Device Package40-QFN (7x5)
