Name: ATP212-S-TL-H
Brand: onsemi
SKU: ATP212-S-TL-H
Availability: InStock

REF: ATP212-S-TL-H onsemi

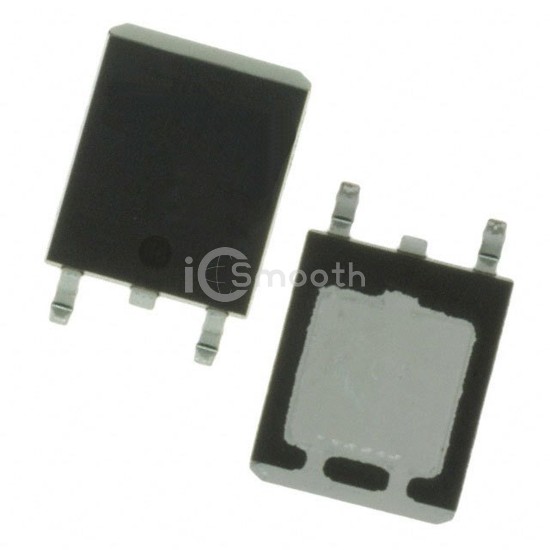

ATP212-S-TL-H

MOSFET N-CH 60V 35A ATPAK

ATP212-S-TL-H is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 60V 35A ATPAK. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case ATPAK (2 leads+tab).

Request a Quote

In Stock: 5,745

Specifications

17 parameters

Product Status	Obsolete
FET Type	-
Technology	-
Drain to Source Voltage (Vdss)	-
Current - Continuous Drain (Id) @ 25°C	35A (Tj)
Drive Voltage (Max Rds On, Min Rds On)	-
Rds On (Max) @ Id, Vgs	-
Vgs(th) (Max) @ Id	-
Gate Charge (Qg) (Max) @ Vgs	-

Vgs (Max)	-
Input Capacitance (Ciss) (Max) @ Vds	-
FET Feature	-
Power Dissipation (Max)	-
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	ATPAK
Package / Case	ATPAK (2 leads+tab)
