Name: AFGB40T65SQDN
Brand: onsemi
SKU: AFGB40T65SQDN
Price: 5.04 USD
Availability: InStock

REF: AFGB40T65SQDN onsemi

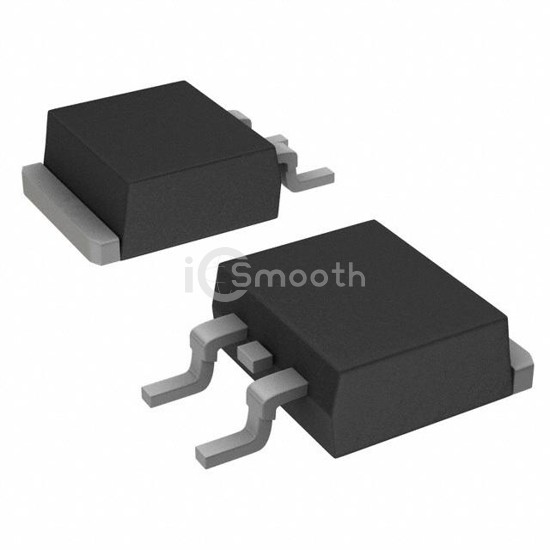

AFGB40T65SQDN

650V/40A FS4 IGBT TO263 A

AFGB40T65SQDN is a Transistors - IGBTs - Single manufactured by onsemi. 650V/40A FS4 IGBT TO263 A. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB, current - collector (ic) (max) 80 A.

Datasheet Request a Quote

In Stock: 8,087

Specifications

17 parameters

Product Status	Active
IGBT Type	-
Voltage - Collector Emitter Breakdown (Max)	650 V
Current - Collector (Ic) (Max)	80 A
Current - Collector Pulsed (Icm)	160 A
Vce(on) (Max) @ Vge, Ic	2.1V @ 15V, 40A
Power - Max	238 W
Switching Energy	858µJ (on), 229µJ (off)
Input Type	Standard

Gate Charge	76 nC
Td (on/off) @ 25°C	17.6ns/75.2ns
Test Condition	400V, 40A, 6Ohm, 15V
Reverse Recovery Time (trr)	131 ns
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Package / Case	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package	D²PAK-3 (TO-263-3)
