Name: AFGB30T65SQDN
Brand: onsemi
SKU: AFGB30T65SQDN
Price: 4.76 USD
Availability: InStock

REF: AFGB30T65SQDN onsemi

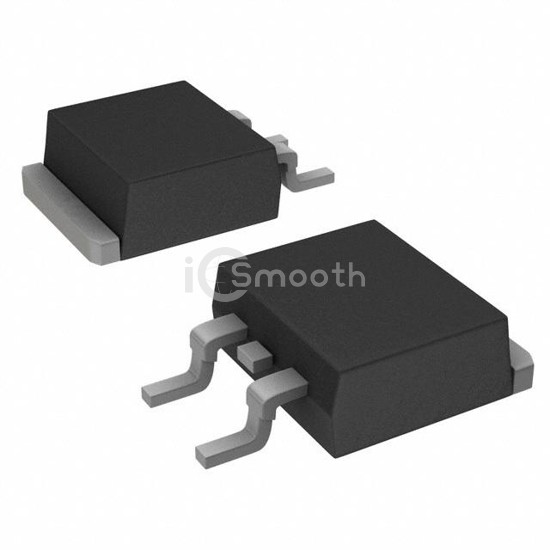

AFGB30T65SQDN

650V/30A FS4 IGBT TO263 A

AFGB30T65SQDN is a Transistors - IGBTs - Single manufactured by onsemi. 650V/30A FS4 IGBT TO263 A. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB, current - collector (ic) (max) 60 A.

Datasheet Request a Quote

In Stock: 8,255

Specifications

17 parameters

Product Status	Active
IGBT Type	-
Voltage - Collector Emitter Breakdown (Max)	650 V
Current - Collector (Ic) (Max)	60 A
Current - Collector Pulsed (Icm)	120 A
Vce(on) (Max) @ Vge, Ic	2.1V @ 15V, 30A
Power - Max	220 W
Switching Energy	-
Input Type	Standard

Gate Charge	56 nC
Td (on/off) @ 25°C	14.5ns/63.2ns
Test Condition	400V, 30A, 6Ohm, 15V
Reverse Recovery Time (trr)	245 ns
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Package / Case	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package	D²PAK-3 (TO-263-3)
