74VCX132BQX

In Stock: 7,836

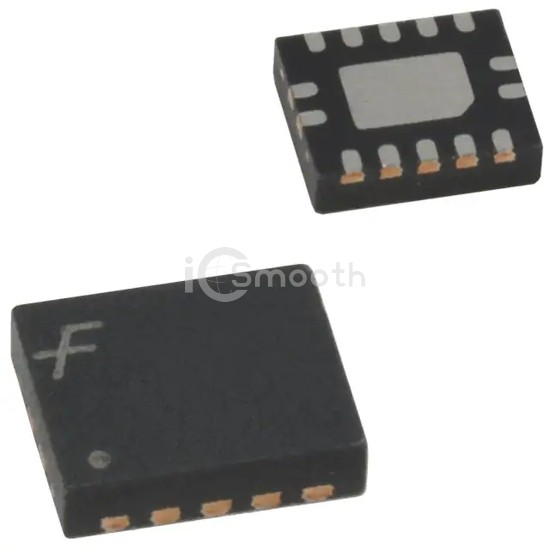

74VCX132BQX - onsemi - Logic - Gates and Inverters
REF: 74VCX132BQX onsemi
74VCX132BQX

onsemi

IC GATE NAND 4CH 2-INP 14DQFN

74VCX132BQX is a Logic - Gates and Inverters manufactured by onsemi. IC GATE NAND 4CH 2-INP 14DQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 1.4V ~ 3.6V, package / case 14-VFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 7,836

Tiered Pricing USD
3,000+ $0.2943 —
6,000+ $0.2711 -8%
9,000+ $0.2593 -12%
15,000+ $0.2494 -15% BEST

Specifications

15 parameters
Product StatusObsolete
Logic TypeNAND Gate
Number of Circuits4
Number of Inputs2
FeaturesSchmitt Trigger
Voltage - Supply1.4V ~ 3.6V
Current - Quiescent (Max)20 µA
Current - Output High, Low24mA, 24mA
Logic Level - Low0.2V ~ 0.8V
Logic Level - High1.2V ~ 2.2V
Max Propagation Delay @ V, Max CL3.3ns @ 3.3V, 30pF
Operating Temperature-40°C ~ 85°C
Mounting TypeSurface Mount
Supplier Device Package14-DQFN (3x2.5)
Package / Case14-VFQFN Exposed Pad
