74VCX08BQX

In Stock: 3,878

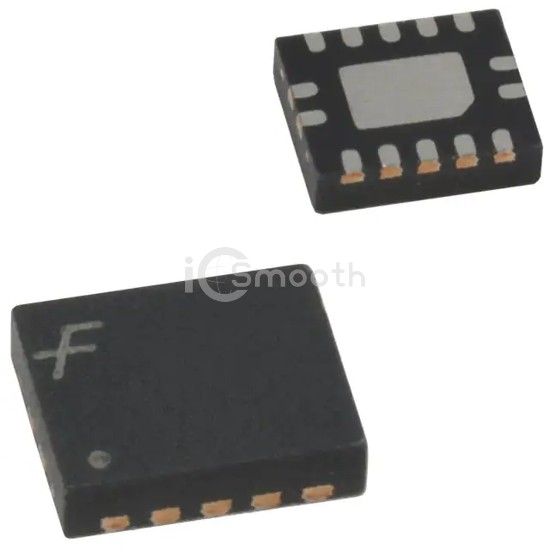

74VCX08BQX - onsemi - Logic - Gates and Inverters
REF: 74VCX08BQX onsemi
74VCX08BQX

onsemi

IC GATE AND 4CH 2-INP 14DQFN

74VCX08BQX is a Logic - Gates and Inverters manufactured by onsemi. IC GATE AND 4CH 2-INP 14DQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 1.2V ~ 3.6V, package / case 14-VFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 3,878

Specifications

15 parameters
Product StatusActive
Logic TypeAND Gate
Number of Circuits4
Number of Inputs2
Features-
Voltage - Supply1.2V ~ 3.6V
Current - Quiescent (Max)20 µA
Current - Output High, Low24mA, 24mA
Logic Level - Low0.7V ~ 0.8V
Logic Level - High1.6V ~ 2V
Max Propagation Delay @ V, Max CL2.8ns @ 3.3V, 30pF
Operating Temperature-40°C ~ 85°C
Mounting TypeSurface Mount
Supplier Device Package14-DQFN (3x2.5)
Package / Case14-VFQFN Exposed Pad
