74LVX04SJX

In Stock: 1,621

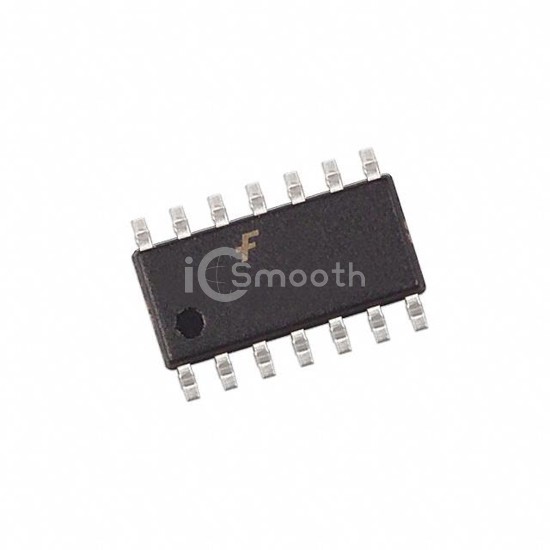

74LVX04SJX - onsemi - Logic - Gates and Inverters
REF: 74LVX04SJX onsemi
74LVX04SJX

onsemi

IC INVERTER 6CH 1-INP 14SOP

74LVX04SJX is a Logic - Gates and Inverters manufactured by onsemi. IC INVERTER 6CH 1-INP 14SOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 2V ~ 3.6V, package / case 14-SOIC (0.209", 5.30mm Width).

Datasheet Request a Quote

In Stock: 1,621

Tiered Pricing USD
2,000+ $0.1801 —
4,000+ $0.1634 -9%
6,000+ $0.1549 -14%
10,000+ $0.1454 -19%
14,000+ $0.1398 -22%
20,000+ $0.1344 -25%
50,000+ $0.1274 -29% BEST

Specifications

15 parameters
Product StatusObsolete
Logic TypeInverter
Number of Circuits6
Number of Inputs1
Features-
Voltage - Supply2V ~ 3.6V
Current - Quiescent (Max)2 µA
Current - Output High, Low4mA, 4mA
Logic Level - Low0.5V ~ 0.8V
Logic Level - High1.5V ~ 2.4V
Max Propagation Delay @ V, Max CL9.7ns @ 3.3V, 50pF
Operating Temperature-40°C ~ 85°C
Mounting TypeSurface Mount
Supplier Device Package14-SOP
Package / Case14-SOIC (0.209", 5.30mm Width)
