74LVX00SJX

In Stock: 9,327

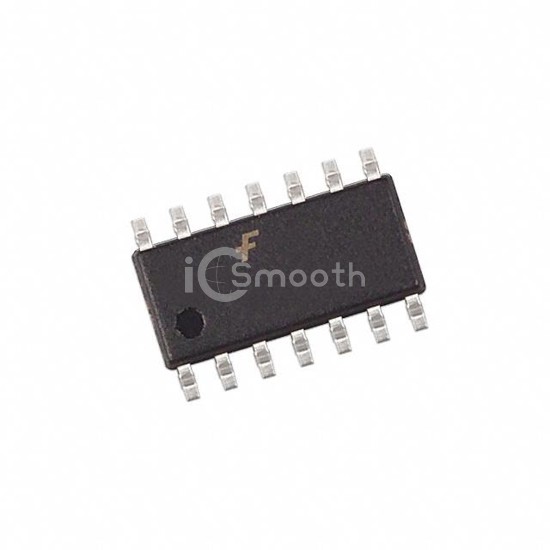

74LVX00SJX - onsemi - Logic - Gates and Inverters
REF: 74LVX00SJX onsemi
74LVX00SJX

onsemi

IC GATE NAND 4CH 2-INP 14SOP

74LVX00SJX is a Logic - Gates and Inverters manufactured by onsemi. IC GATE NAND 4CH 2-INP 14SOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 2V ~ 3.6V, package / case 14-SOIC (0.209", 5.30mm Width).

Datasheet Request a Quote

In Stock: 9,327

Tiered Pricing USD
2,000+ $0.1486 —
4,000+ $0.1344 -10%
6,000+ $0.1271 -14%
10,000+ $0.1190 -20%
14,000+ $0.1142 -23%
20,000+ $0.1095 -26%
50,000+ $0.1000 -33% BEST

Specifications

15 parameters
Product StatusObsolete
Logic TypeNAND Gate
Number of Circuits4
Number of Inputs2
Features-
Voltage - Supply2V ~ 3.6V
Current - Quiescent (Max)2 µA
Current - Output High, Low4mA, 4mA
Logic Level - Low0.5V ~ 0.8V
Logic Level - High1.5V ~ 2.4V
Max Propagation Delay @ V, Max CL9.7ns @ 3.3V, 50pF
Operating Temperature-40°C ~ 85°C
Mounting TypeSurface Mount
Supplier Device Package14-SOP
Package / Case14-SOIC (0.209", 5.30mm Width)
